2.4" SPI Serial 320X240 TFT Touch Display Module For Arduino

Brand Name : OEM

Model Number : OKY4031-1

Place of Origin : CHINA

MOQ : 10PCS

Price : USD$4.60-5.29/PCS

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 10000PCS

Delivery Time : 1-3 working days

Packaging Details : Different package at optional: 1. Retailing Package:Anti-static bag 2. Bulking Packing:Plastic Bag Package 3. Retailing Box package design according to your requirement( Order > 3000PCS)

Name : 2.4" SPI Serial 320X240 TFT Touch Display Module For Arduino

Module PCB backplane size : 77.18x42.72(mm)

Resolution : 320*240 (Pixel)

Effective display area (AA area) : 36.72x48.96(mm)

Working temperature : -20℃~70℃

Storage temperature : -30℃~80℃

VCC power supply voltage : 3.3V~5V

Logic IO port voltage : 3.3V (TTL)

Size : 2.4(inch)

Type : TFT

Contact Now

2.4" SPI Serial 320X240 TFT Touch Display Module For Arduino

Description:

Display color: RGB 65K color
Size: 2.4(inch)
Type: TFT
Driver chip: ILI9341
Resolution: 320*240 (Pixel)
Module interface: 4-wire SPI interface
Effective display area (AA area): 36.72x48.96(mm)
Module PCB backplane size: 77.18x42.72(mm)
Working temperature: -20℃~70℃
Storage temperature: -30℃~80℃
VCC power supply voltage: 3.3V~5V
Logic IO port voltage: 3.3V (TTL)
Power consumption: about 90mA

Features:

1. 2.4-inch color screen,support 65K color display,display rich colors.
2. Using the SPI serial bus, it only takes a few IOs to illuminate the display.
3. Easy to expand the experiment with SD card slot.
4. Provide a rich sample program.
5. Process standards, long-term stable work.

Photos:

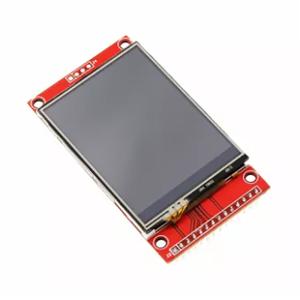

2.4" SPI Serial 320X240 TFT Touch Display Module For Arduino
